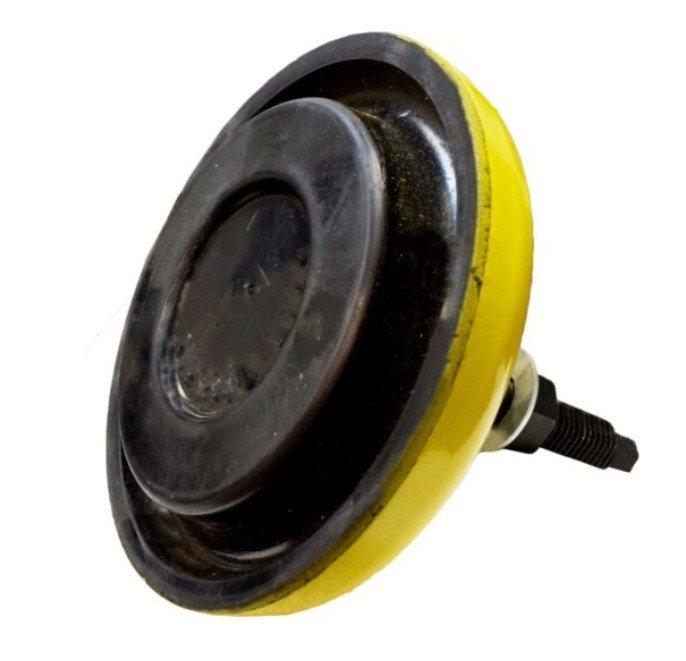

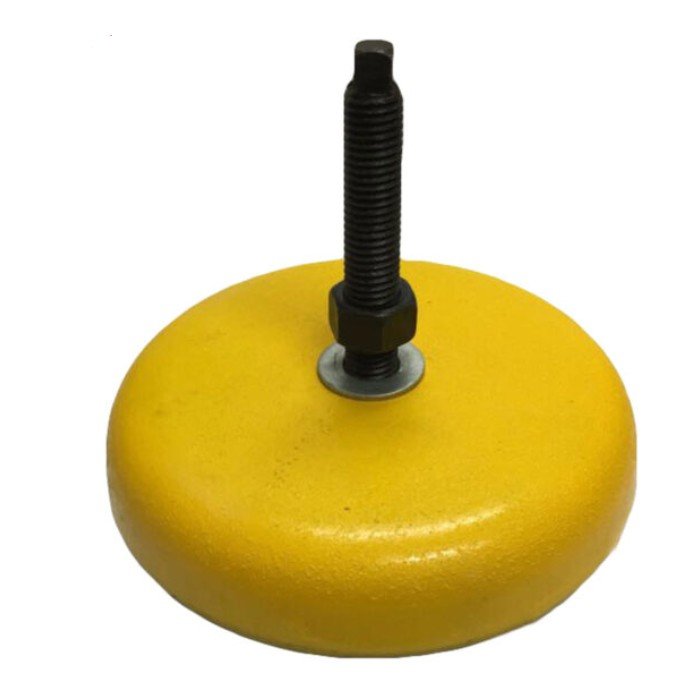

Leveling Feet Vibration Absorbing Machine Mount Stand Foot Pad

Weight 1 kg
Dimensions 15 × 5 × 15 cm
Make METEX
Size M12 120mm Small SE1, M12 80mm Extra Small SE0, M16 160mm Medium SE2, M20 185mm Large SE3, M24 240mm Extra Large SE4, M30 230mm ExExL SE5

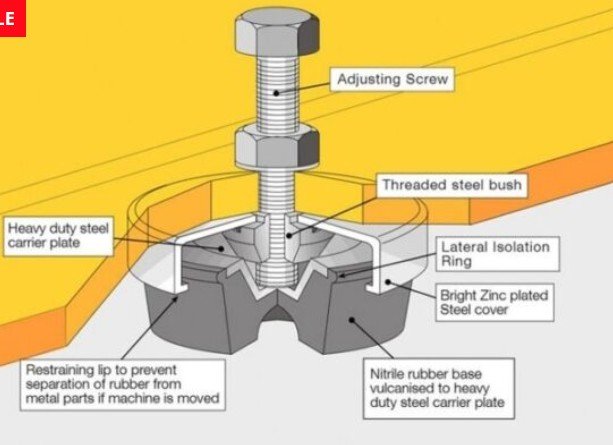

Anti- Vibration & Leveling

High Quality Manufactured
Shock Absorption and Anti Vibration for all Machinery Types
Machinery can be installed without anchoring

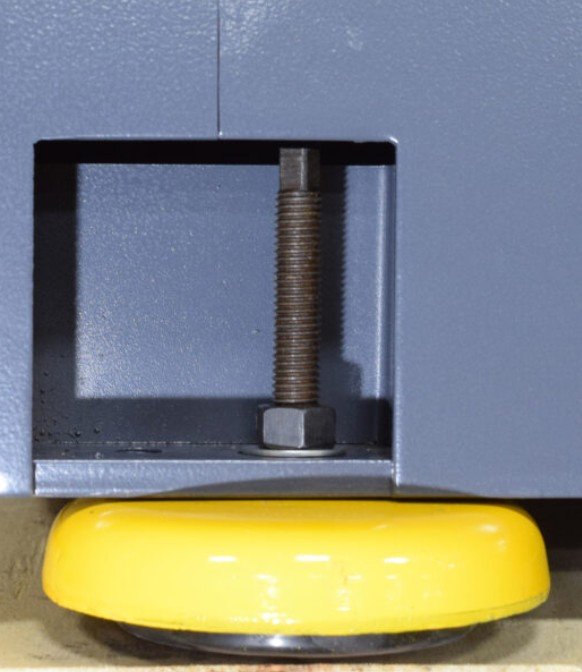

Exact Leveling of Machine by Height Adjustment
Machine Capability will be improved due to Vibration Absorption

Specifications Extra Small 80mm

Load Per Unit– 250kg
Tread Type – M12x90mm
Size – 80mm Diameter

Specifications Small 120mm

Load Per Unit– 300kg
Tread Type – M12x100mm
Size – 120mm Diameter

Specifications Medium 160mm

Load Per Unit– 800kg
Tread Type – M16x120mm
Size – 160mm Diameter

Specifications Large 185mm

Load Per Unit– 1500kg
Tread Type – M20x130mm
Size – 185mm Diameter

Specifications Extra Large 240mm

Load Per Unit– 2000kg
Tread Type – M24x180mm
Size – 240mm Diameter

Specifications Double Extra Large 230mm

Load Per Unit– 10000kg
Tread Type – M30x200mm
Size – 230mm Diameter
